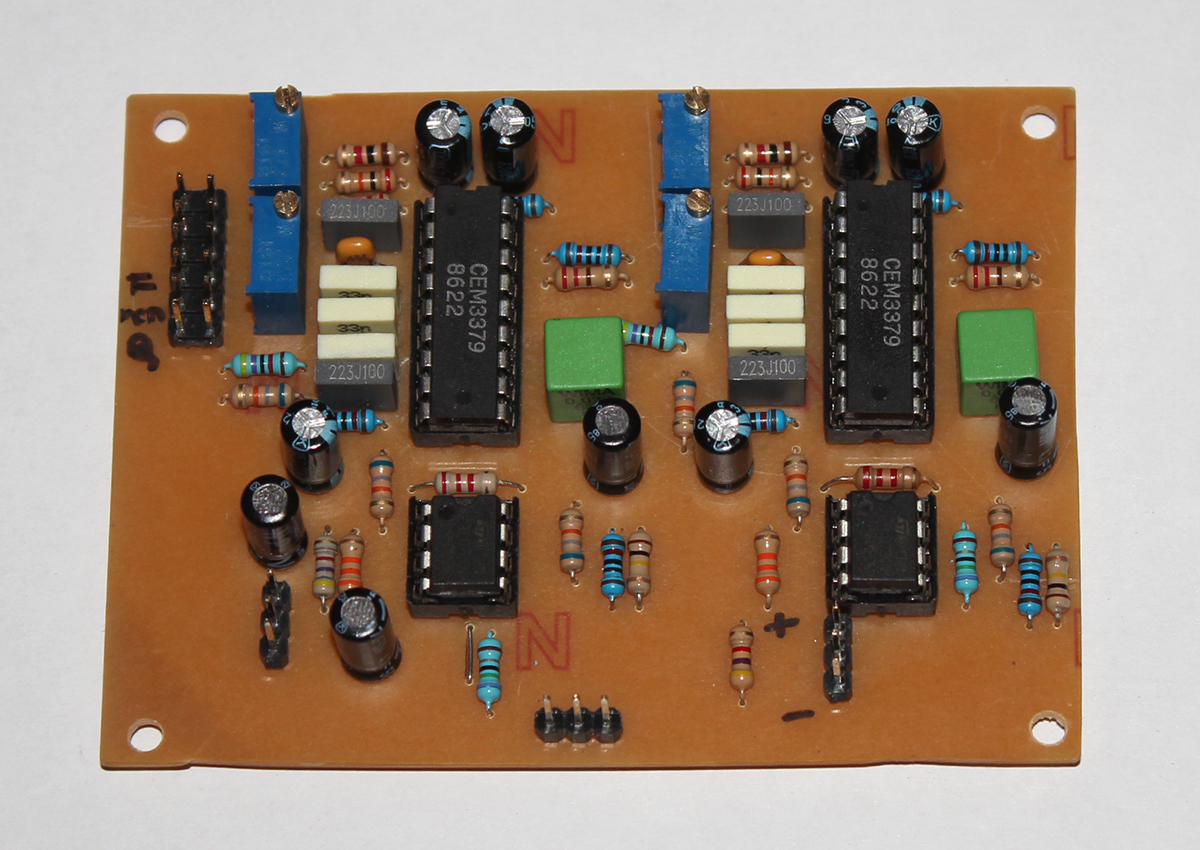

CEM3379 Stereo VCF assembled board


Schrabikus
 Share


From the album:

CEM3379 Stereo VCF

  • 3 images
  • 0 comments
  • 6 image comments

Photo Information for CEM3379 Stereo VCF assembled board

Taken with Canon Canon EOS 600D

  • 55 mm
  • 1/60
  • f f/5.6
  • ISO 200
View all photo EXIF information
 Share


Recommended Comments

Great work!
Funny; someone here talked about the CEM3396, then nothing...
And without a word you come with the CEM3379, board already done! That's cool.

Did you plan to connect it to a Core?
Did you think about a front panel?
Doku?

:cheers:

Edited by Antichambre
Link to comment

Based on the shruthi-1 original filter board ;) - Great to see a stereo version for connecting AOUT modules..! Thanks a lot.

Edited by Rio
Link to comment

@Antichambre This an old project, but I'm still not finished the control surface. Enclosure has taken from old soviet "MICRO" calculator Elektronika MK-44 but it has no main PCB, so I'm still searching for another one to take keyboard from it for more authentic look :rolleyes:
Rio asked me for the project files, so I've uploaded everything to public.
Yes, design is based on Olivier's original Shruthi-1 CEM filter board, other parts is quite standard except OLED - CORE8 PCB with MidiboxSID v2.042, Stereo SID6581 PCB and AOUT_NG. PSU is taken from old DVD player - +5/+12/-12 volts, CEM VCF powered with +12/-12V.

The only one noisy part is OLED's boost converter, I was thinking of powering it directly from +12V rail, should fix the problem.




Edited by Schrabikus
  • Like 1
Link to comment
