[FS] PCBs (MB-6582, Ultracore, GM5), MB Panels, SID chips, LCDs, Encoders
Barcode replied to zid's topic in Fleamarket
PM'd for 6582's. -
-
-
From the album: Barcode's Stuff
-
I plan on changing the layout a bit and adding a few more features. I will update as I make progress. -
The PCB size it 250mm x 100mm.
-
From the album: Barcode's Stuff
Here is the control surface for the MB808 Sequencer I'm working on. -
From the album: Barcode's Stuff
The latest version of my MB808 Sequencer. -
The overall size will be about 100mm x 250mm. Nice and compact. -
From the album: Barcode's Stuff
Here's a quick mock up of a standalone MB808 Sequencer. I'm still trying to figure out infill and LED colors. -

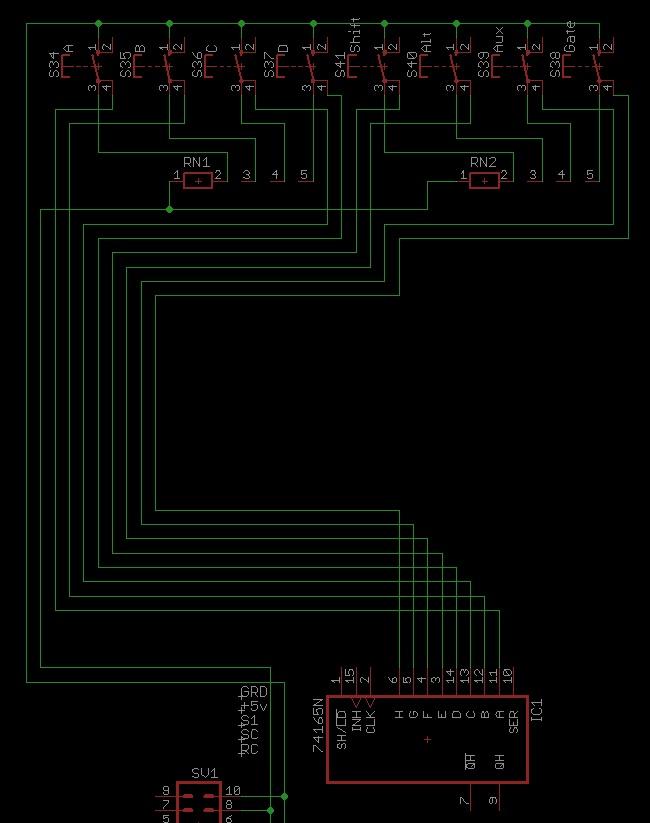

I want to verify I have the switches correctly. I just want to get a few more eyes on this before I go any further? I know it's not the prettiest looking but I'm hoping it will work.
-
From the album: Barcode's Stuff
The enclosure came in on Thursday and finished building it on Friday! Woohoo! -
I found this one when looking for a fully enclosed external PSU. I like the idea of only needing a 5pin DIN to hook it up. Meanwell P25A13D-R1B http://www.jameco.com/Jameco/Products/ProdDS/190960.pdf
-
From the album: Barcode's Stuff
Here's an enclosure I came up with for the GM5x5x5. The outside dimensions are 235mm x 33mm x 57mm. Very tight and compact. Current design quotes at about $17 USD. -
From the album: Barcode's Stuff
The first version of my budget enclosure for the SEQ. The overall height of the enclosure will be 46mm. Mounting hole are for the LPC17 Core, AOUT NG, and the Quad IIc_Midi. The current design quotes at $46 USD. -
Exactly what the title says. :smile: PM with a price. Thanks!
-
I put myself down for 1. Thank you!
-
I finally took the plunge and ordered all the parts to finally build a SEQ. I've also decided to design my own enclosure. I was able to track down the mounting hole dimensions for all of the PCB's besides the Quad IIc_MIDI PCB. Could someone out there help me out? Thanks in advance. :smile:
-
Added a few more DK16's and 1 DK38 to my order. Thanks again!
-
Finally a bulk order I didn't miss! I'm in for 30 clear. :smile:
-
Just a quick questions..... Did you have to use longer shaft switches and encoders to compisate for the thicker material?
-
Hi All. While at work today I was having a discussion with an owner from a location machine shop about having them make some front / back panels for a TR9090 project I'm working on. We then got of the subject of electronics ect. and brought up that he is looking from someone to design a PCB for a high powered led light he is working. PCB design / etching is beyond me so I thought I'd check with you folks. If you might be interested let me know via PM so I can send you his contact info. Oh yeah... He said he would pay for the design or trade for some machining work. Free panels!!! Thanks!
-
Added myself to the list. I am interested!
-
I would be interested in joining a bulk as well. 20 or 30 (maybe more) black/clear for me!
