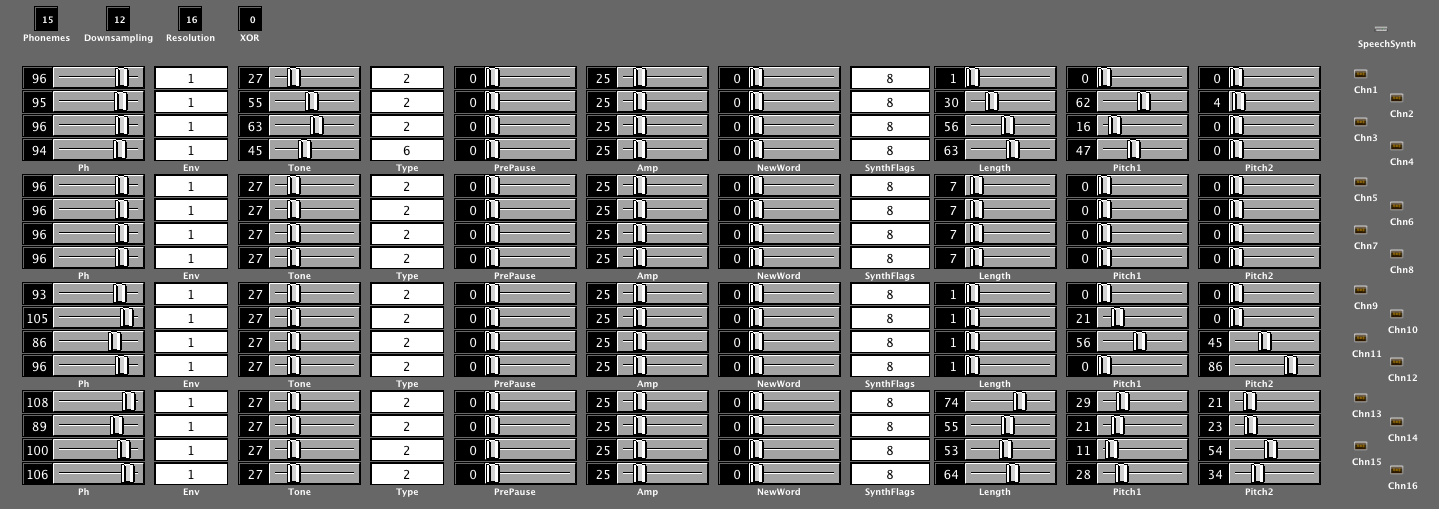

TK. Posted June 27, 2011 Report Posted June 27, 2011 Follow up to After more experiments with the espeak code I came to following result: http://www.ucapps.de/mp3/misc/speech_demo2.mp3 (Reverb has been added with an external Fx) Basically a list of phonemes is played, all parameters can be configured via CC. A quick&dirty configuration logic panel in Logic: This opens a new field for experiments! :) Best Regards, Thorsten. Quote
toneburst Posted June 27, 2011 Report Posted June 27, 2011 Wow, that does sound intriguing! Nice work, TK!! Interested to see where this leads. a|x Quote
Hawkeye Posted June 28, 2011 Report Posted June 28, 2011 Sounds nice! Def. usable in some dark tracks :-) Quote
m00dawg Posted July 3, 2011 Report Posted July 3, 2011 Wow that sounded awesome, although it just about scared the shit out of me :) Quote

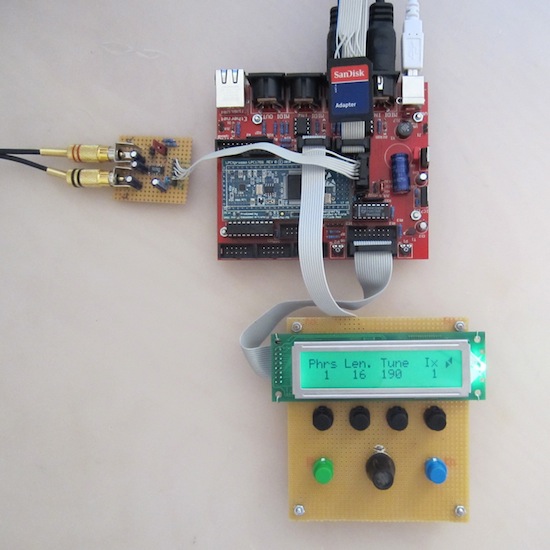

TK. Posted July 10, 2011 Author Report Posted July 10, 2011 Current status :) The control surface allows me to test parameter changes quickly w/o the usage of a CC panel in Logic (resp. a mouse) - good results are found much faster. Phonemes and patches can be stored on SD Card now. Note that this synth is still in experimental stage. Once I started to hack the speech engine (I already added bugfixes), the CS (more knobs for realtime editing!) but also the audible results (playing the formant synth directly!) could be much different ;) Best Regards, Thorsten. Quote
orange_hand Posted July 11, 2011 Report Posted July 11, 2011 That's great, generates some ideas immediately :-).... Quote
toneburst Posted July 11, 2011 Report Posted July 11, 2011 Looking forward to hearing some more audio examples! a|x Quote
m00dawg Posted July 11, 2011 Report Posted July 11, 2011 Looking forward to hearing some more audio examples! a|x +1! Quote
toneburst Posted September 2, 2011 Report Posted September 2, 2011 (edited) Hi Thorsten, do you happen to have a circuit-diagram or vero/matrixboard layout diagram for the I2S board? Just bought a couple of TDA1543s on eBay. Interested to know if your I2S board uses this DAC chip. a|x Edited September 2, 2011 by toneburst Quote
toneburst Posted September 2, 2011 Report Posted September 2, 2011 (edited) Also, do you have diagrams for the control-surface above :) I'm sure I've seen discussion of a 'standard control-surface' here, but I can't seem to find it now... a|x Edited September 2, 2011 by toneburst Quote
ilmenator Posted September 2, 2011 Report Posted September 2, 2011 I'm sure I've seen discussion of a 'standard control-surface' here, but I can't seem to find it now... Try :-) Quote
toneburst Posted September 2, 2011 Report Posted September 2, 2011 (edited) Thanks ilmenator. I did a search for forum 'standard control surface', and it didn't come back with anything... Odd. Anyway, cheers! a|x Edited September 2, 2011 by toneburst Quote
