Rio Posted February 17, 2021 Report Share Posted February 17, 2021 rev D should work: I'm not sure what else to do ... but maybe try another PC. After that you can find out what's going on with the current one. Quote Link to comment Share on other sites More sharing options...
Number 6 Posted February 18, 2021 Report Share Posted February 18, 2021 I've tried on another compter and I have the same result. In both cases the board shows up in Blutooth & other devices. Quote Link to comment Share on other sites More sharing options...
Rio Posted February 18, 2021 Report Share Posted February 18, 2021 (edited) did you try this: If his guidance on the rev D doesn't help, you could PM him. at least he managed it. Edit: Oh, I just checked again at myself: I had actually successfully flashed a Rev D1 via the IDE 8.2.2 in the past. I can't remember any unusual things now. Edited February 18, 2021 by Rio Quote Link to comment Share on other sites More sharing options...
Rio Posted February 19, 2021 Report Share Posted February 19, 2021 (edited) Ok, i have found my rev.D1 board again and plugged it in. It's using CMSIS DAP linker too. Yes, it is also not found (with closed jumper). So something is still fishy. Have you ever tried to load the host drivers from nxp: https://www.nxp.com/design/microcontrollers-developer-resources/lpc-microcontroller-utilities/lpcxpresso-board-for-lpc1769-with-cmsis-dap-probe:OM13085 at the bottom: Host Device Drivers ( 1 ) - Firmware and drivers for LPC11U35 debug probes I think that's for it .. Edited February 19, 2021 by Rio Quote Link to comment Share on other sites More sharing options...
Number 6 Posted February 19, 2021 Report Share Posted February 19, 2021 Just now, Rio said: Ok, i have found my rev.D1 board again and plugged it in. It's using CMSIS DAP linker too. Yes, it is also not found (with closed jumper). So something is still fishy. Have you ever tried to load the drivers from nxp: https://www.nxp.com/design/microcontrollers-developer-resources/lpc-microcontroller-utilities/lpcxpresso-board-for-lpc1769-with-cmsis-dap-probe:OM13085 at the bottom: Host Device Drivers ( 1 ) - Firmware and drivers for LPC11U35 debug probes I've just done so, same result :-( In the IDE console I have [Started server] [Connected on port 3025] redlink>ProbeList No probes found Quote Link to comment Share on other sites More sharing options...
Rio Posted February 19, 2021 Report Share Posted February 19, 2021 (edited) and did you install LPC11U35 installer before and restart PC? Edited February 19, 2021 by Rio Quote Link to comment Share on other sites More sharing options...
Rio Posted February 19, 2021 Report Share Posted February 19, 2021 (edited) i found this too: https://community.nxp.com/t5/MCUXpresso-IDE/OM13085-Board-No-compatible-emulators-available/m-p/1026193 did you follow these instructions?: https://community.nxp.com/t5/LPC-Microcontrollers-Knowledge/Flashing-and-Installing-the-new-firmware-and-drivers-for/ta-p/1127375 I know tired but it should work at some point. Edited February 19, 2021 by Rio Quote Link to comment Share on other sites More sharing options...
Number 6 Posted February 19, 2021 Report Share Posted February 19, 2021 Just now, Rio said: and did you install LPC11U35 installer before and restart PC? Yes... Quote Link to comment Share on other sites More sharing options...
Number 6 Posted February 19, 2021 Report Share Posted February 19, 2021 Just now, Rio said: i found this too: https://community.nxp.com/t5/MCUXpresso-IDE/OM13085-Board-No-compatible-emulators-available/m-p/1026193 did you follow these instructions?: https://community.nxp.com/t5/LPC-Microcontrollers-Knowledge/Flashing-and-Installing-the-new-firmware-and-drivers-for/ta-p/1127375 I know tired but it should work at some point. The board is different, I cannot get the disk to mount. Quote Link to comment Share on other sites More sharing options...
Rio Posted February 19, 2021 Report Share Posted February 19, 2021 (edited) The board isn't different...LPC11U35 is the CMSIS-DAP Debug Probe board name, or not? and it is referred to by the LPC1769 board rev.D on that side. Edited February 19, 2021 by Rio Quote Link to comment Share on other sites More sharing options...

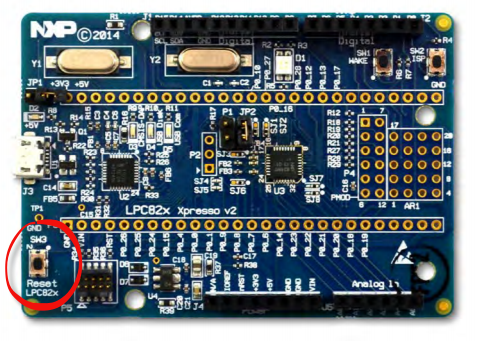

Number 6 Posted February 19, 2021 Report Share Posted February 19, 2021 5 minutes ago, Rio said: The board isn't different...LPC11U35 is the CMSIS-DAP Debug Probe board name, or not? and it is referred to by the LPC1769 board rev.D on that side. That picture is not a REV D. Quote Link to comment Share on other sites More sharing options...
Rio Posted February 19, 2021 Report Share Posted February 19, 2021 (edited) there are 3 more links at the bottom by ZhangJennie, about that post about 1769 rev.D problems, referred to: - MBED serial driver - probe firmware - Can't find debug Probe ticket.. I know the picture you posted/shown is related to a lpc8xx but I think it uses the same probe (CMSIS-DAP). BTW: You have to think of it this way: there are two boards - on the one hand it is the debug / linker probe and on the other hand the LPC1769 board - both are connected. If the jumper is set, the probe has priority. Edited February 19, 2021 by Rio Quote Link to comment Share on other sites More sharing options...
Number 6 Posted February 19, 2021 Report Share Posted February 19, 2021 MBED won't install. Quote Link to comment Share on other sites More sharing options...
Rio Posted February 19, 2021 Report Share Posted February 19, 2021 (edited) ok i tried the same steps that you mentioned. And I come to the same conclusion that it does not work under win10 as you described (with me, however, no drivers are shown in the device manager). I don't quite get it - I'm (actually) sure I got it installed in the past - but that was a win7. But when I try to install it in Win7 it doesn't work either. When installing the mbed driver, the same error message appears. it is really crap right now ... maybe gerald.wert has an idea, he also successfully connected it, just didn't write how. Edited February 20, 2021 by Rio Quote Link to comment Share on other sites More sharing options...
Rio Posted February 20, 2021 Report Share Posted February 20, 2021 (edited) ok, i have now tested a different usb cable (the cable is short and thicker - it looks more stable). Everything works now (also with win7 and win10). The jumper must be removed, otherwise the linker will not work. no mbed driver needed or anything else...it worked for me without installing anything or without updating the firmware now. but i'm not sure if i ever installed the mbed stuff before i was switching to win10 - that was 2 years ago, but I don’t think so, because I restore a untouched/clean OS once a year. so either you actually don't have a really good short cable at hand, or you have an old firmware on the probe. check out: 1. better cable 2. update linker/probe firmware have a look here: https://community.nxp.com/t5/LPCXpresso-IDE/LPCXpresso-LPC1769-OM13085-Can-t-find-debug-Probe/td-p/736413 so, therefore you can hold 'reset' button on board or solder a bridge on JP4. I just did the solder solution. that's working. so you get into the ISP mode and you can copy the newer not mbed-based firmware for the linker board (LPC11U35 debug probe) again. I didn't do that now, because my board already works, but it should work as described here. Quote That year we introduced a new version of the firmware that was not based on mbed... Edited February 20, 2021 by Rio Quote Link to comment Share on other sites More sharing options...
Antichambre Posted February 20, 2021 Report Share Posted February 20, 2021 Hello, Try also to change the speed:https://community.nxp.com/t5/LPCXpresso-IDE/Change-emualtor-speed-in-quot-program-flash-quot/m-p/566246 Brest regards Bruno Quote Link to comment Share on other sites More sharing options...
Rio Posted February 20, 2021 Report Share Posted February 20, 2021 but if you read further below, you can see that the problem was with the cable again! Quote Link to comment Share on other sites More sharing options...
Number 6 Posted February 21, 2021 Report Share Posted February 21, 2021 OK I need to find a short cable then. Thx! Quote Link to comment Share on other sites More sharing options...
Rio Posted February 21, 2021 Report Share Posted February 21, 2021 (edited) short and thick... and if that doesn't help, we'll try to update the firmware of the probe. ps: don‘t forget to remove the jumper of JP3 Edited February 21, 2021 by Rio Quote Link to comment Share on other sites More sharing options...
Number 6 Posted August 11, 2021 Report Share Posted August 11, 2021 Hi Guys, It's been a while, I've had health issues, spent time in hospital and so on, but I'm back, just trying the same thing again, I did manage to find a short cable but not thick, same result, also tried to lower the speed, same result. Could someone provide a link to buy a cable that works for you on amazon? Otherwise, could I ship my unit to someone who could try to flash it for me(I'm in France BTW)? Thx!!! Quote Link to comment Share on other sites More sharing options...
Elektruck Posted February 10, 2022 Report Share Posted February 10, 2022 On 9/27/2017 at 7:47 AM, midiwanted said: I joined the screenshots I take if it could help anyone thanks for your help mios32_bootloader with LPCXpresso_8.2.2.pdf Thank you very much!!! I did this years ago, multiple times. Now a friend asked for help with his LPC1769 but I didn't succeed anymore, until I found your post! Merci bien! Quote Link to comment Share on other sites More sharing options...
Rio Posted February 10, 2022 Report Share Posted February 10, 2022 (edited) On 8/11/2021 at 9:52 AM, Number 6 said: Hi Guys, It's been a while, I've had health issues, spent time in hospital and so on, but I'm back, just trying the same thing again, I did manage to find a short cable but not thick, same result, also tried to lower the speed, same result. Could someone provide a link to buy a cable that works for you on amazon? Otherwise, could I ship my unit to someone who could try to flash it for me(I'm in France BTW)? Thx!!! Hi, there might be something wrong with your board. I tried it several times with my different 1769 board revisions - a,b, d - all with success. So you can check your board for bad solder points and/or the debugger/link interconnection.. maybe you missed something. Edited February 10, 2022 by Rio Quote Link to comment Share on other sites More sharing options...
