Lasercut Acrylic Case+ Frontpanel for SEQv4

44 posts in this topic

Hello,

I have converted wilba's seqv3/v4 frontpanel layout for laser cut acrylic. I have also added interlocking sides and bottom to make a sammich-style enclosure. It is all laid out on a P3 sized template for ordering from ponoko. This template is designed for 3mm laser-cut acrylic and the cost for standard colors (making and material included) is less than $50.00! It's about $10.00 more for matte finish (which is what I have ordered)

I have attached the necessary files in case they may be helpful to someone else who wants a low-cost enclosure/panel for their MBseq.

*Note - (you should alter the rear panel cutouts to match your core, and expansions)

Later I will post a diagram and a list of the spacers required to assemble this enclosure. With the right hardware, I believe this case will be quite sturdy (considering the size of the entire unit and the fact that it is cut from acrylic and not aluminum) I will post pictures and feedback once I have assembled the case. The ponoko site says their current turnaround for laser cut orders is approx. 2 weeks, so I'll update this post when my order arrives.

.eps for illustrator and .svg for freeware vector art programs are both contained in this .rar archive, you can download these and modify them, the .jpg attached to this post is simply for visualization purposes, while the vector files in the .rar archive are formatted with the proper colors for cutouts and engraving (ponoko)

Enjoy!

Quick View: post-11104-0-85962600-1345580267_thumb.j

and the vector files: enclosure.rar

Share this post


Link to post
Share on other sites

Good job!

I would have positioned the interlocking parts such that the laser has to cut only once. That would reduce the cost somewhat. Also, I wonder why the mounting holes for the displays are smaller than the ones for Wilba's PCB?

Share this post


Link to post
Share on other sites

Nice! was converting the layout easy? I want to make one for the 9090 too.. Been waiting tooooo long for my panels, and these are much less expensive.

Share this post


Link to post
Share on other sites

Nice work! Am going for an el-cheapo portable second SEQ, that would benefit from such an enclosure - please keep us up to date, if everything fits :-D

Many greets,

Peter

Share this post


Link to post
Share on other sites

Nice! was converting the layout easy? I want to make one for the 9090 too.. Been waiting tooooo long for my panels, and these are much less expensive.

1. Open the .fpd file in frontpanel designer (the free app from frontpanel express)

2. Export as .svg

3. Open .svg in illustrator or other vector art software

4. Paste on to Ponoko Template

5. Change line color to correspond with desired cutting/engraving setting, modify dimensions and etc.

That's all there is to it.

BTW, I used a free web-based app call Box Maker to generate the interlocking edges of the enclosure:

http://boxmaker.rahulbotics.com/ - you enter your desired dimensions and it generates the six sides for you. - You can even specify the amount of material that is vaporized by the laser when cutting, and the software will automatically compensate for this to make sure all your joints are very snug. It's really important to use this feature if the enclosure will be held together by friction and standoffs (as opposed to the t-nut cutouts on a Shruthi Case)

Share this post


Link to post
Share on other sites

Very interested in this too. Any news?

Cheers,

Arkay.

Share this post


Link to post
Share on other sites

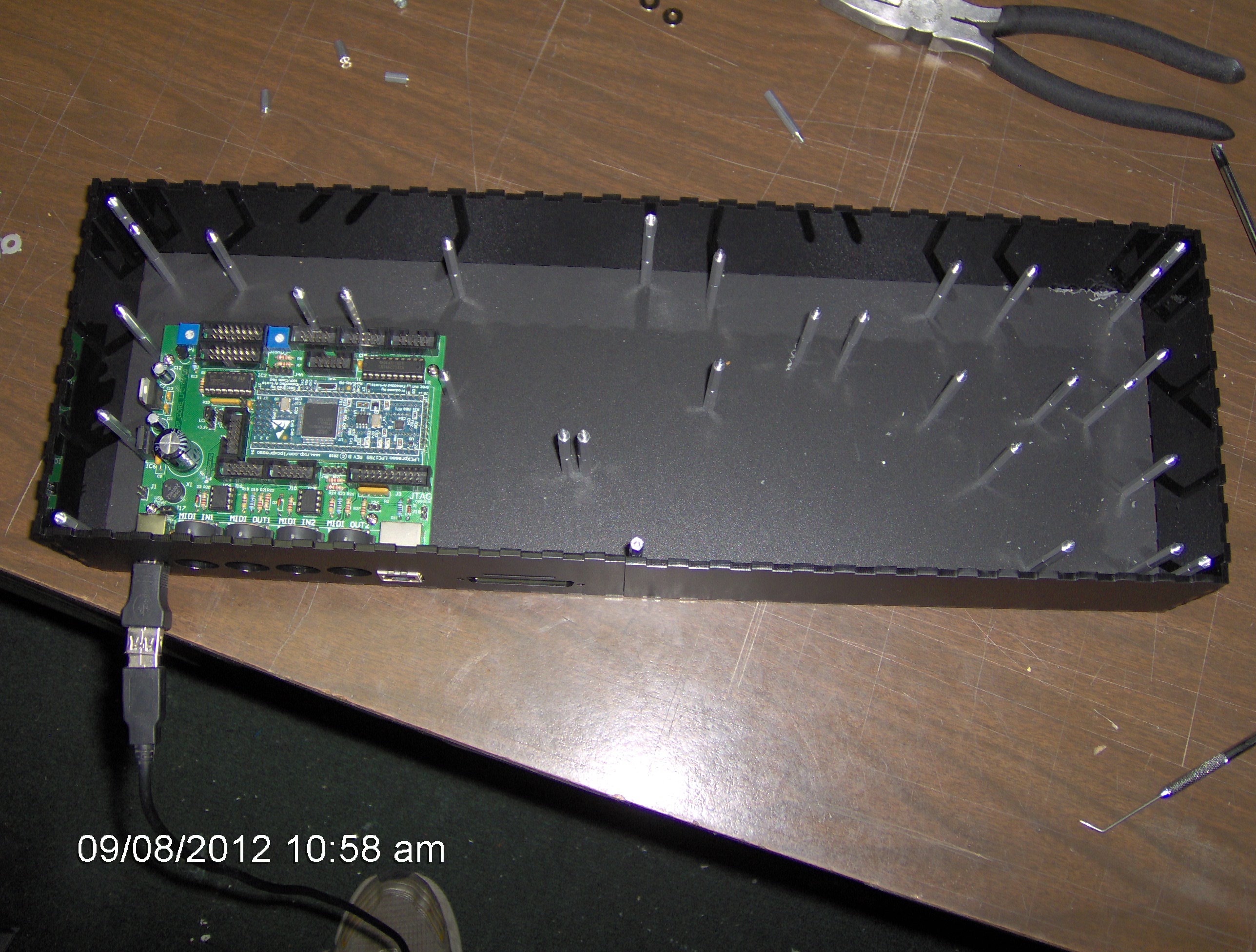

I will take some better pictures with a real camera, and write a full report when I get home tonight. For now here is a preview as promised:

post-11104-0-39445600-1347139008_thumb.j

post-11104-0-90325500-1347139103_thumb.j

Share this post


Link to post
Share on other sites

Looking good. Will be very interested to see the finished product ;)

Certainly for the price it looks excellent.

Cheers,

Arkay.

Share this post


Link to post
Share on other sites

great work!

Share this post


Link to post
Share on other sites

Very cool! (want one too now, but waiting for Ilmenators TPD PCB for additional ghetto bling :-))

Many greets,

Peter

Edited by Hawkeye

Share this post


Link to post
Share on other sites

Any more info on this one. Would love to see some more pics of the completed unit. If you could describe what files you need to send where, i.e. how to order it, that would be an awesome help too. I have no idea having never done it before?

Thanks! :D

Cheers,

Arkay.

Share this post


Link to post
Share on other sites

I have just ordered my panel, it will be in my hands around Oct 14 or so. You could visit www.ponoko.com, they have a hub in New Zealand, this is where Wilba's SammichSID and -FM cases are made.

Share this post


Link to post
Share on other sites

Any more info on this one. Would love to see some more pics of the completed unit. If you could describe what files you need to send where, i.e. how to order it, that would be an awesome help too. I have no idea having never done it before?

Thanks! :D

Cheers,

Arkay.

The spacers needed are as follows:

50mm from bottom to wilba PCB (I used two 25mm stacked)

10mm from wilba pcb to top

The Wilba PCB is about 1mm thick, so for the six holes around the outer edge, you will use 11mm standoffs on top of the 50mm standoffs so that they are all the same height.

Share this post


Link to post
Share on other sites

Thanks for the info. Will look into ordering one shortly too. Once I sort out these MB6582 issues I'm having and get into the SEQv4 build.

Cheers,

Arkay.

Share this post


Link to post
Share on other sites

This is awesome Smokestack. What is the deal with p1, p2 and p3 dimensions? Sorta confused by this part. Which is best for the lpc17? Also, I just uploaded the .svg file to Ponoko bypassing illustrator. This should work right? Thanks.

Share this post


Link to post
Share on other sites

Yo! I added a few holes for the Quad IIC Midi Module!

Would be nice if someone could confirm that I haven't made some super stupid mistake ;)

I just got my MIDIIIC4 from smash, I'll probably order a new back panel to accomodate it and I'll update this in the cut file after I order and confirm athe fit.

Share this post


Link to post
Share on other sites

Very cool! (want one too now, but waiting for Ilmenators TPD PCB for additional ghetto bling :-))

Many greets,

Peter

What be that I wonder?

TPD in search box = no results found hmmmmm

cheers

Paul

Share this post


Link to post
Share on other sites

Got any pics of what it looks like all put together? Really thinking about going this route for my build...

Share this post


Link to post
Share on other sites

Got any pics of what it looks like all put together? Really thinking about going this route for my build...

they're in the gallery

Share this post


Link to post
Share on other sites

What be that I wonder?

Hi Paul,

sorry for the late reply - this is it - see lower right part of the video :)

Many greets,

Peter

Share this post


Link to post
Share on other sites

Very nice design Smokestack!

Any more direction on hardware that you can offer?:

-What standoffs did you use to mount the Core? What hardware did you use to 'sammich' the enclosure together? LCDs?

You'd mentioned a diagram in your first post that would illustrate these things; any progress on that? (I could put it together for you if you PM'd me a hand sketch...everybody's busy ;)

Have fun.

Share this post
