MIDIbox of the Week (MB808 with nice selfmade acryl frontpanel)

MIDIbox of the Week (MB808 with nice selfmade acryl frontpanel) Rate Topic:

#1 TK.

MIDIbox Guru

Group: Administrators
Posts: 11,134
Joined: 01-January 01
LocationGermany

Posted 16 March 2009 - 22:04

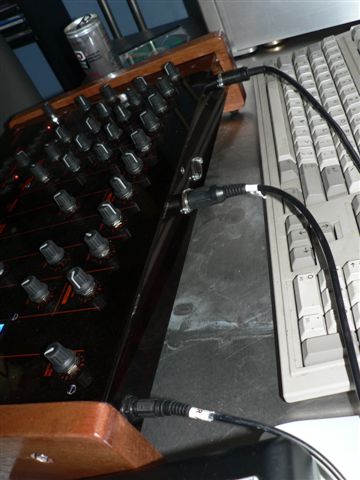

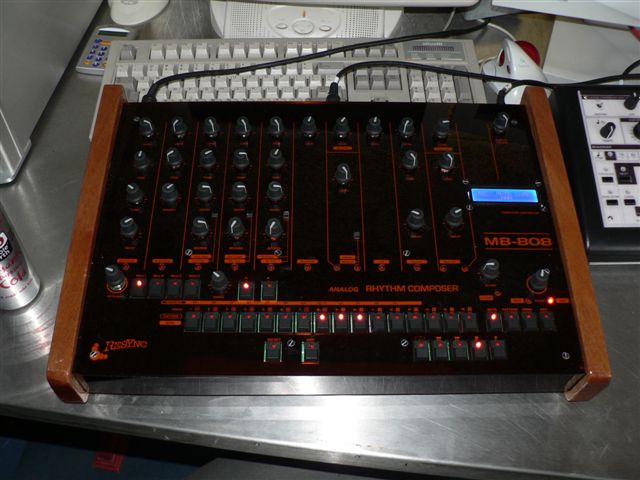

This MB808 has been built by Richard. Note that the acryl frontpanel is selfmade!

He wrote:

Quote

I've just finished my mb808.
Maybe you have some space for pictures ?? (But i don't find any 808's ??)
I'am lucky to own a laser cutting/engrave system so i can make nice frontplatters for all my (MB)synths.. :-)
Check: www.frontplaten.net

Thanks for all the good work !!

Richard.
Holland

If you would like to get a similar frontpanel for your project, or even more customized one, feel free to contact him. :)

Best Regards, Thorsten.

#2 moogah

MIDIbox Tweaker

Group: Programmer
Posts: 317
Joined: 15-July 05
LocationNorth of Boston, USA

Posted 17 March 2009 - 02:07

Bravo! Looks very nice 8) Shame there aren't more of them! I've been trying to get in touch with a silkscreener to finish my case for almost a month now :(

#3 Flexinoodle

MIDIbox Newbie

Group: Members
Posts: 99
Joined: 09-July 08
LocationSomewhere beyond the outer rim

Posted 17 March 2009 - 04:08

Oooooh
really nice box :D

Flexi

#4 nILS

MIDIbox Hero

Group: Administrators
Posts: 3,986
Joined: 22-July 03
LocationStuttgart, Doucheland

Posted 17 March 2009 - 04:15

Nice one!

#5 stryd_one

MIDIbox Guru

Group: Frequent Writer
Posts: 8,850
Joined: 25-February 03
LocationMelbourne, Victoria, Australia

Posted 17 March 2009 - 04:28

Pr0n.

#6 Sasha

MIDIbox Guru

Group: Members
Posts: 1,941
Joined: 20-March 05
LocationBelgrade, Serbia

Posted 17 March 2009 - 08:29

Looking good. Too bad you didn`t use some scratch proof laserable material.

#7 curve

MIDIbox Newbie

Group: Members
Posts: 20
Joined: 27-October 08

Posted 17 March 2009 - 13:35

just beautiful. :D

#8 Gridracer

MIDIbox Addict

Group: Members
Posts: 116
Joined: 26-January 09
LocationGermany

Posted 17 March 2009 - 17:45

:o Great looks!!
I definitely like how the orange labeling goes with the dark red of the Acryl.
Has a very high wanna touch factor. Hands on! :D

#9 DenDer

MIDIbox Tweaker

Group: Members
Posts: 312
Joined: 19-October 07
LocationAmsterdam

Posted 26 March 2009 - 23:20

Yeah nice Richard....this guy is a friend of mine and he is located right around the corner of where i live. I told him to put it up here.....thanks TK for posting his work. ;)
I've been at his workspace and really the possibillities are legion. You've got choice of any font you can think of and any color you desire.
He is also doing the frontplate of SIDDER, that i'm currently designing.

But first things first......i've just completed the build of my 9090 with integrated MB Seq V3 in a desktop case. The frontplate i designed will be lasered next week by Richard and offcourse i'll be posting some pics of that here to. Think in the way the SCI Pro One is designed. Real jummie stuff.

#10 sineSurfer

MIDIbox Tweaker

Group: Programmer
Posts: 284
Joined: 04-September 07
LocationMexico City

Posted 27 March 2009 - 04:37

is nice to see a finished mb808, the first one maybe?, and a good looking one ;)

#11 Goblinz

MIDIbox Guru

Group: Members
Posts: 1,022
Joined: 30-May 07
LocationYorkshire, UK

Posted 02 April 2009 - 11:10

Nice!

You own your own laser cutter/engraver ?.... Hope you're prepared for a full inbox!

#12 fede.vr73

MIDIbox Newbie

Group: Members
Posts: 9
Joined: 29-March 09

Posted 02 April 2009 - 17:10

that's really a nice 808..... love the overall look..
+ kudos
Federico

#13 DenDer

MIDIbox Tweaker

Group: Members
Posts: 312
Joined: 19-October 07
LocationAmsterdam

Posted 18 April 2009 - 20:07

Yeah Richard ownes his own laser cutter....he has a company that does all kinds of promotional stuff and dtp work.
Also good for stickers etcetera.....
And i don't know if Richard is already active on this forum.....i'll be seeing him next week for my 9090 with MB SEQ so i'll ask him.

Quote

Nice!

You own your own laser cutter/engraver ?.... Hope you're prepared for a full inbox!

#14 ssp

MIDIbox Tweaker

Group: Programmer
Posts: 402
Joined: 08-March 09

Posted 21 April 2009 - 08:22

dender, if i were to send him my front panel and case work schematics would he be able to cut and then do the markings for me? i have everything laid out ready with full measurements etc. the company i was checking with over here in the uk is seriously extortionate

#15 DrBunsen

MIDIbox Guru

Group: Members
Posts: 975
Joined: 17-February 03

Posted 24 April 2009 - 01:45

droolicious!

#16 DenDer

MIDIbox Tweaker

Group: Members
Posts: 312
Joined: 19-October 07
LocationAmsterdam

Posted 02 May 2009 - 22:34

I don't know with which program you designed your frontpanel. For Richard's machine it requires a design made in Coreldraw since this is the program the laser cutter reads. So if you have a design, make it in Coreldraw. Then is just a matter of sending the cdr (extension name from corel) to Richard along with your requirments concerning color scheme. I know Richard is now busy updating the site with all the information you guys need and he is active on this site but he's a busy guy.
I'll keep you updated in this thread......
